Wiring Diagrams

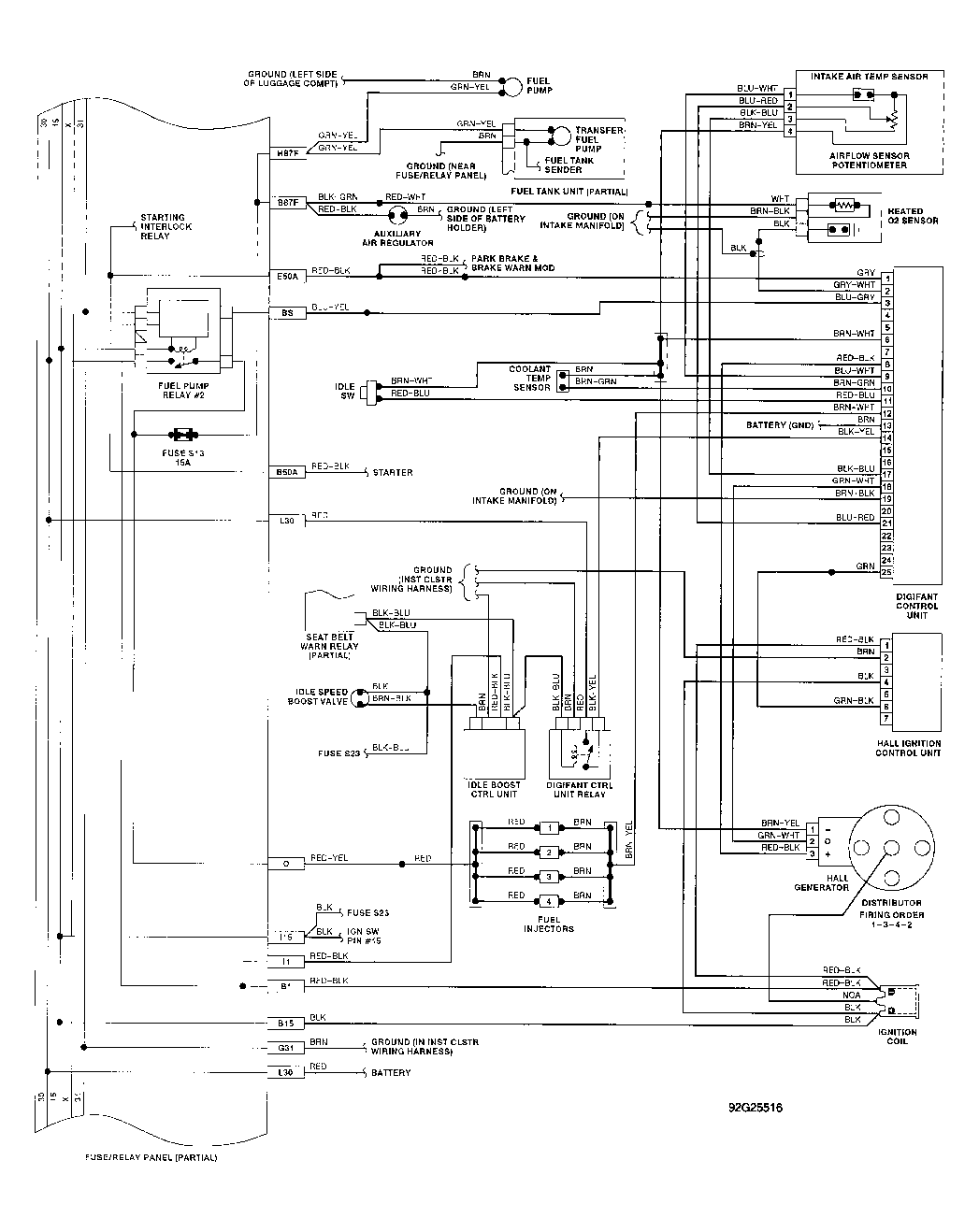

Fig 1: Wiring Diagram (Cabriolet 1.8L Digifant I - California)

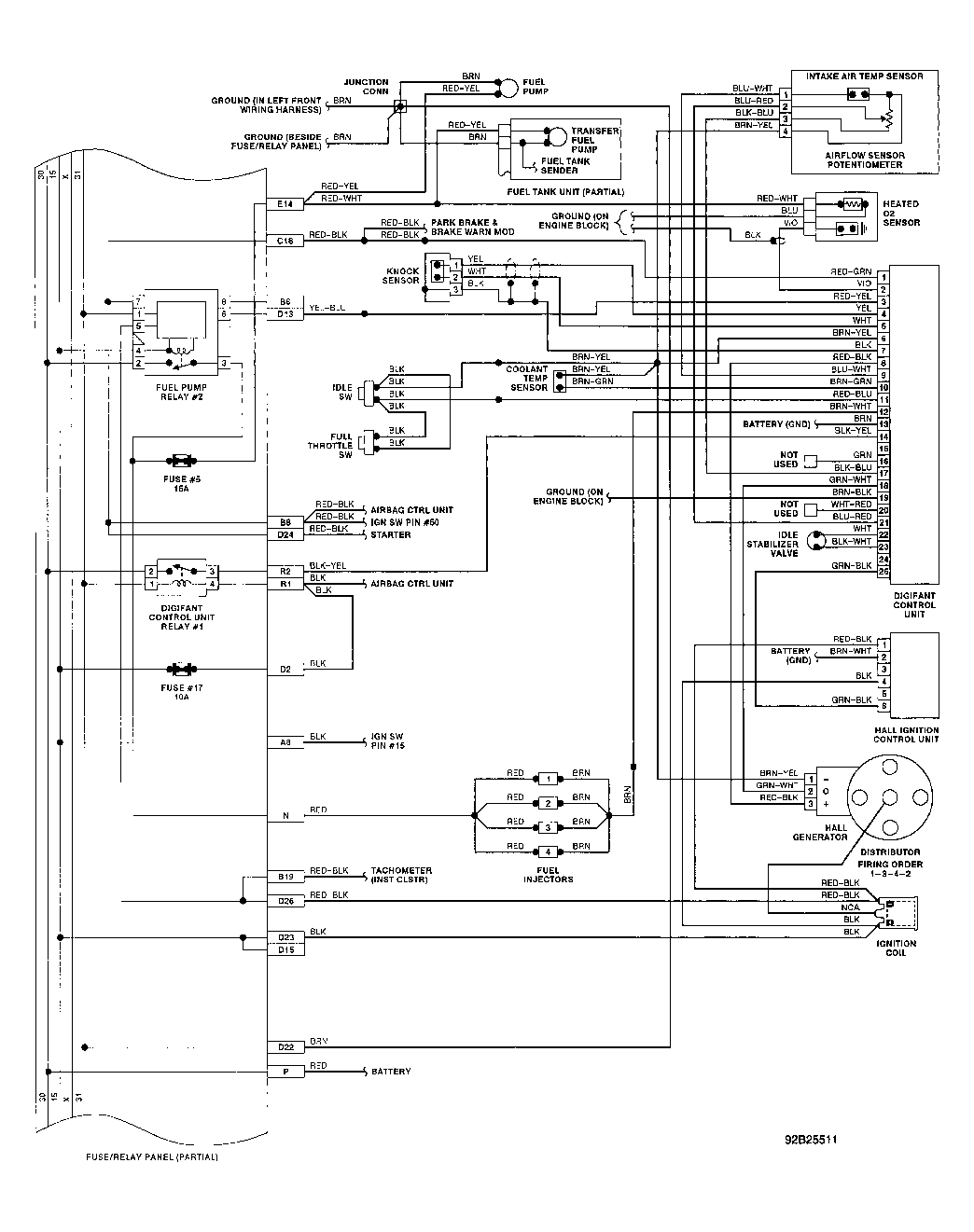

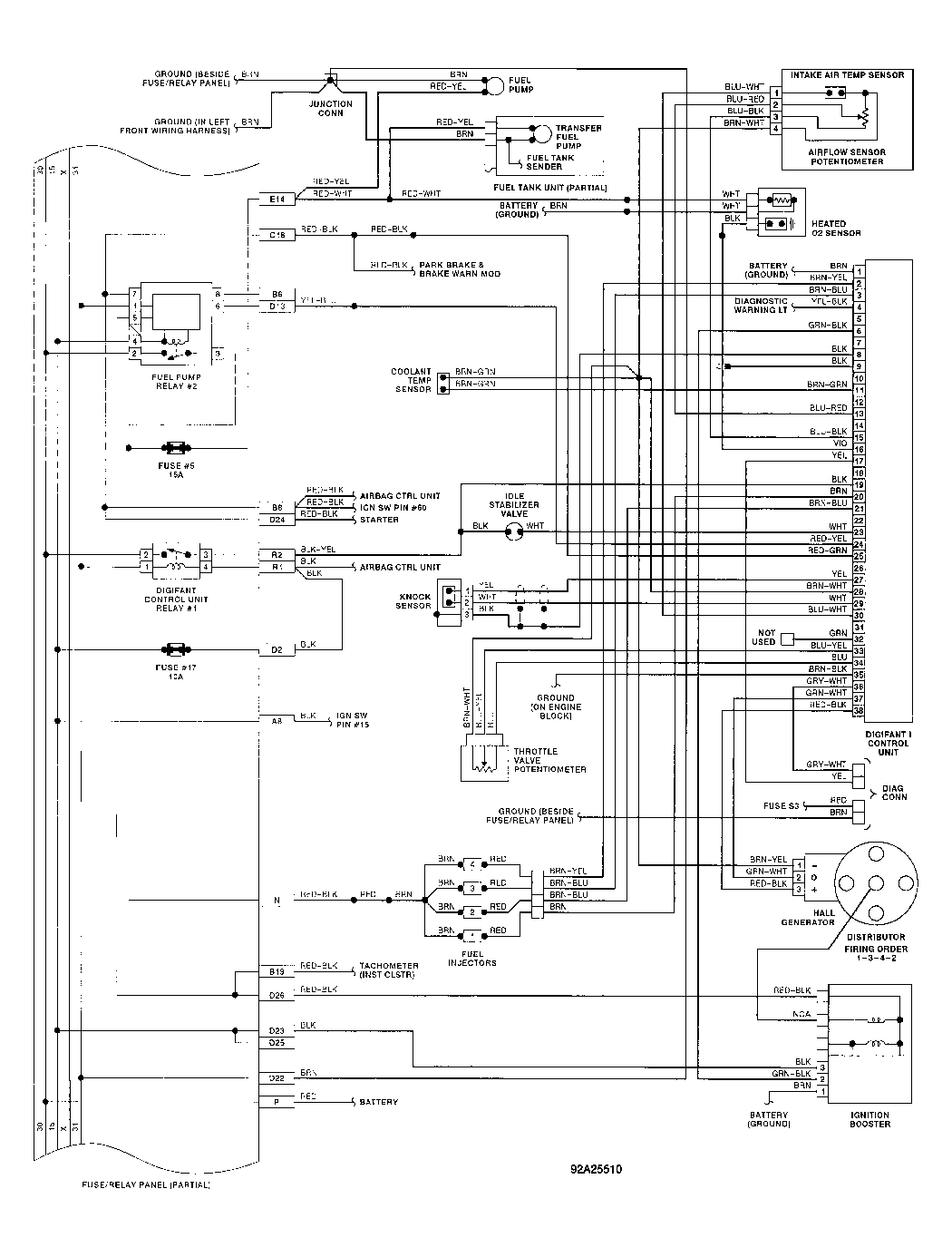

Fig 2: Wiring Diagram (Cabriolet 1.8L Digifant II)

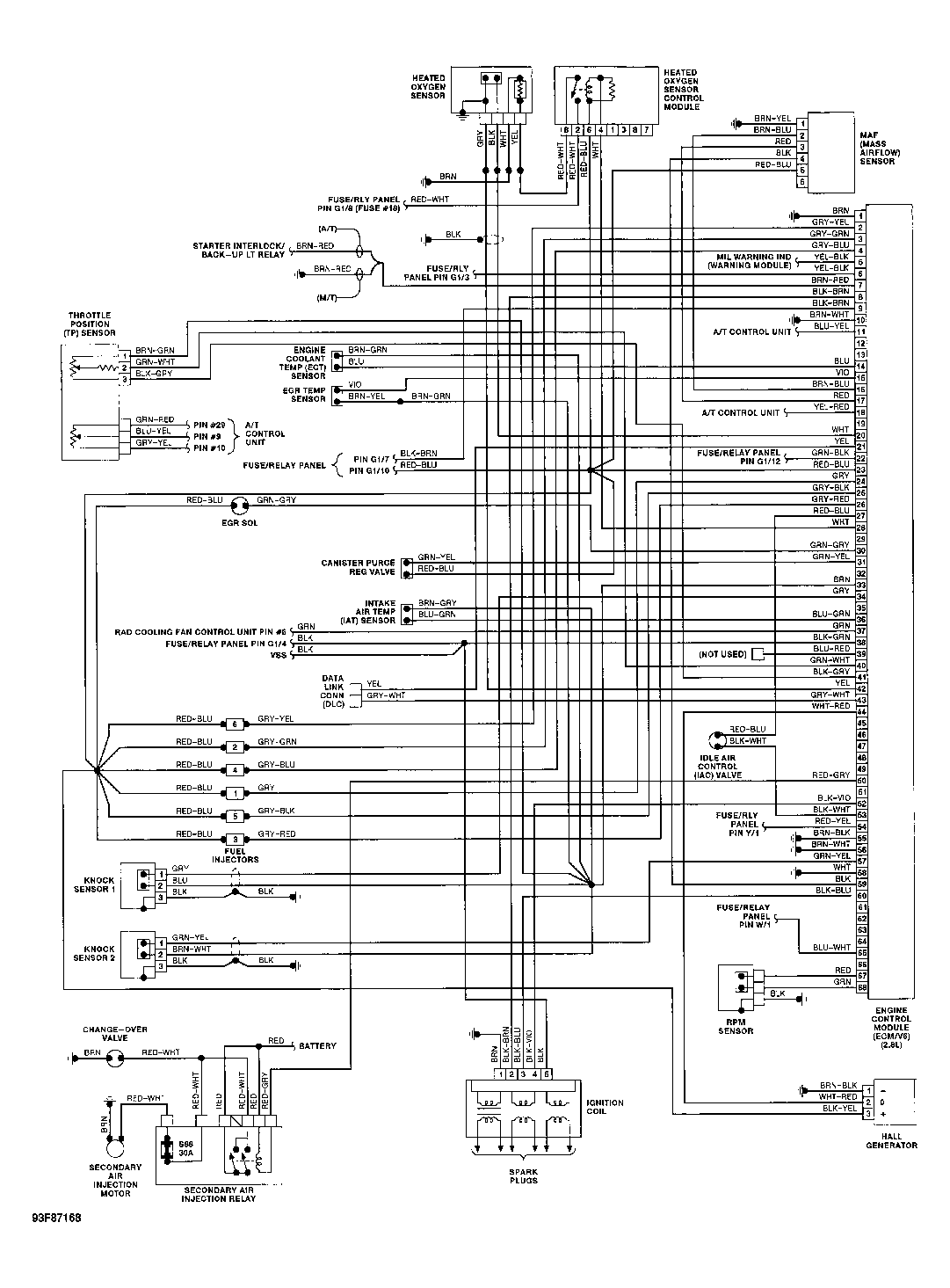

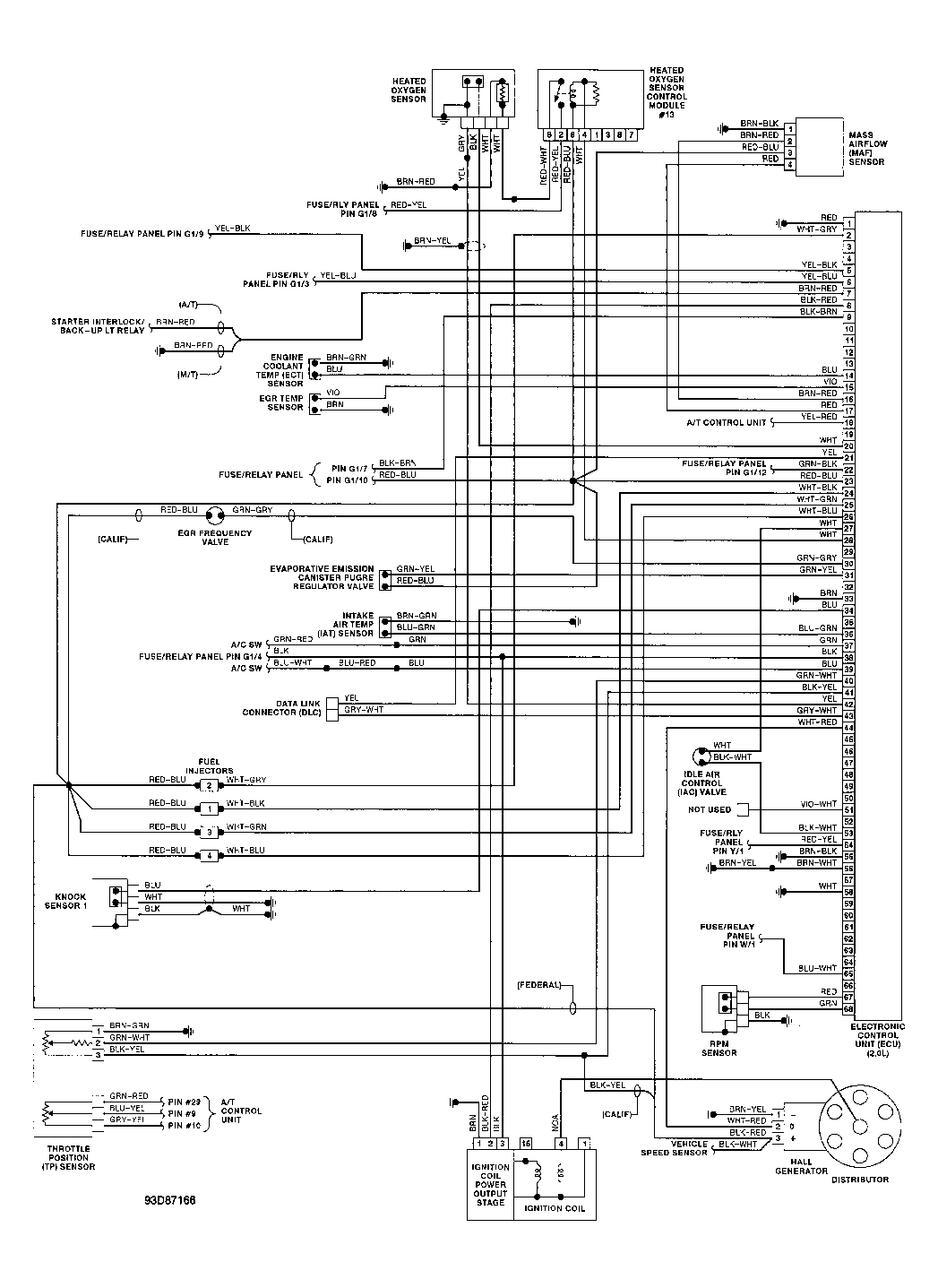

Fig 3: Wiring Diagram (Corrado SLC 2.8L)

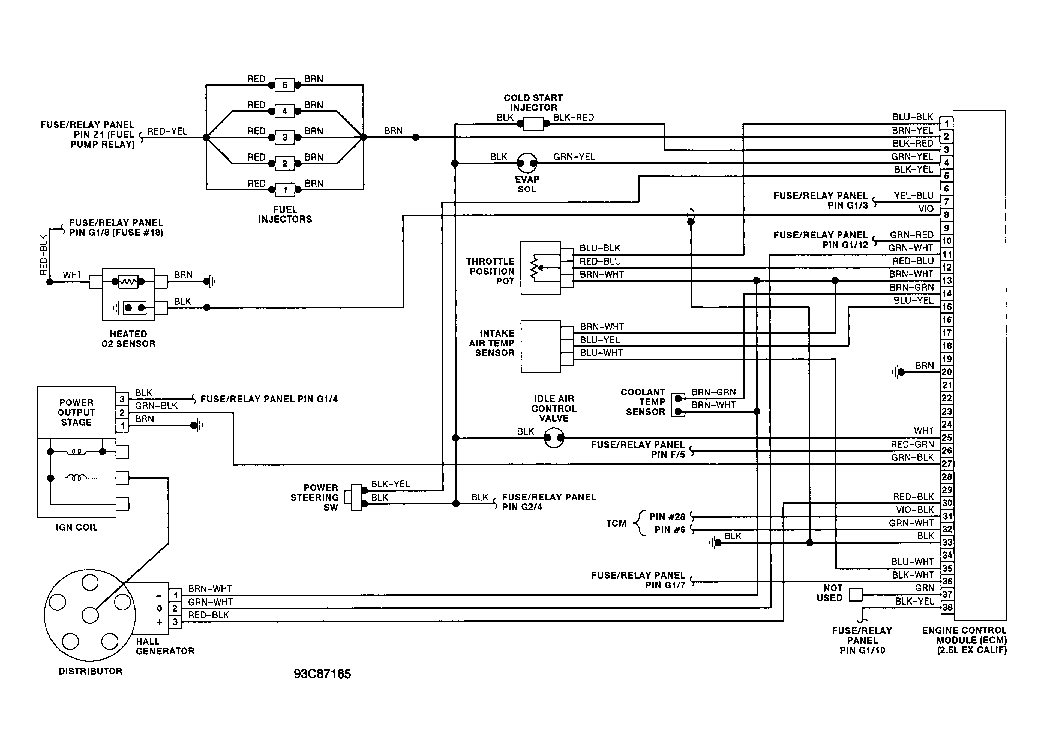

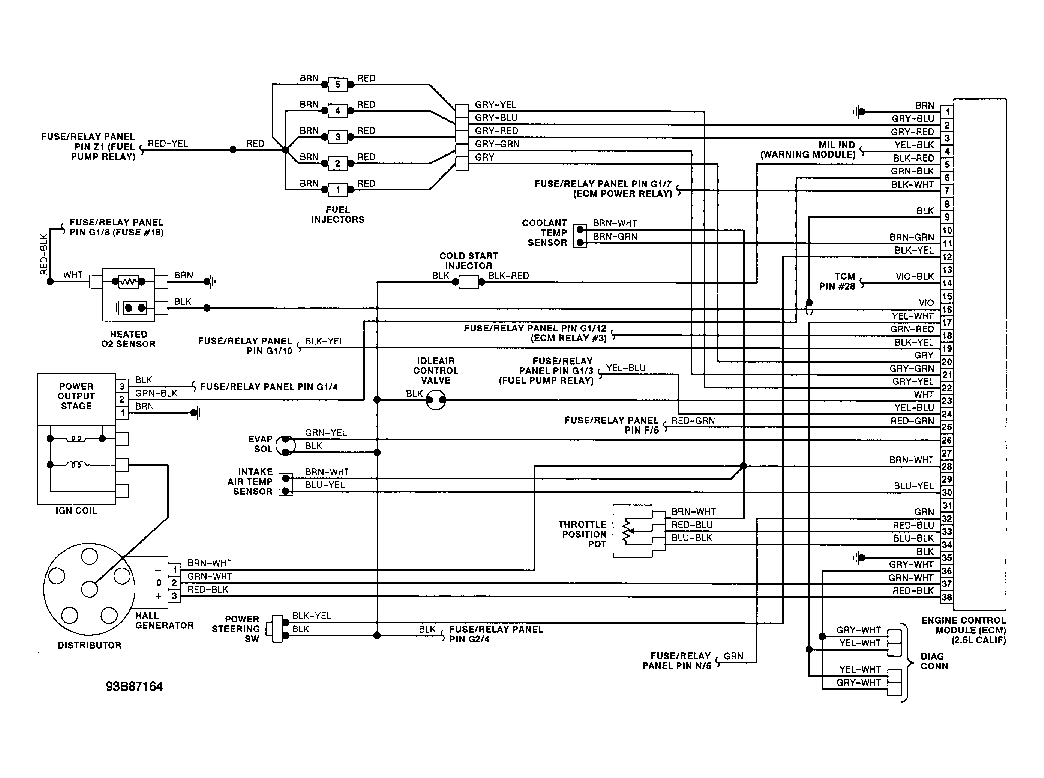

Fig 4: Wiring Diagram (EuroVan 2.5L - California)

Fig 5: Wiring Diagram (EuroVan 2.5L - Except California)

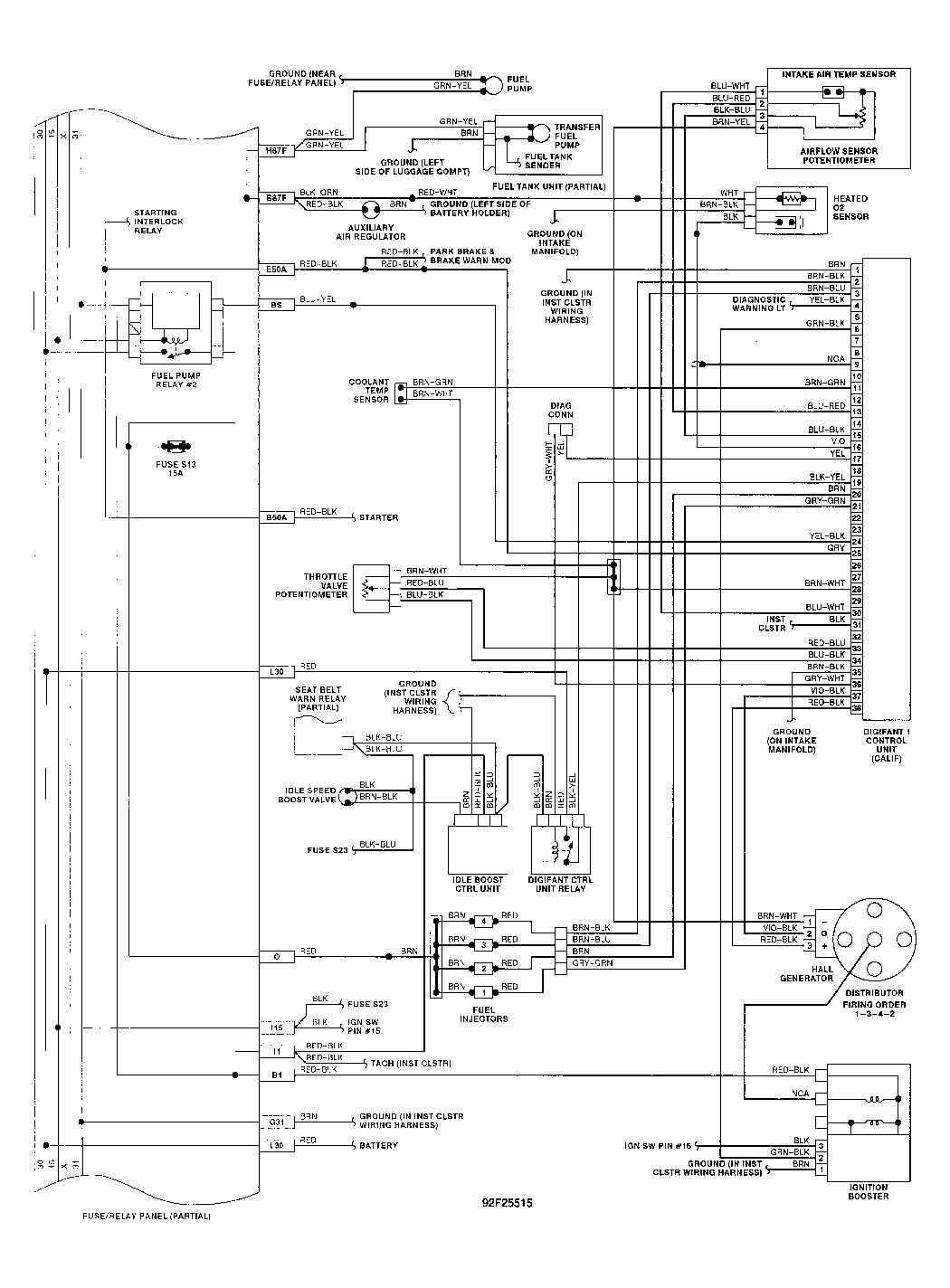

Fig 6: Wiring Diagram (Fox 1.8L Digifant I - California)

Fig 7: Wiring Diagram (Fox 1.8L Digifant II)

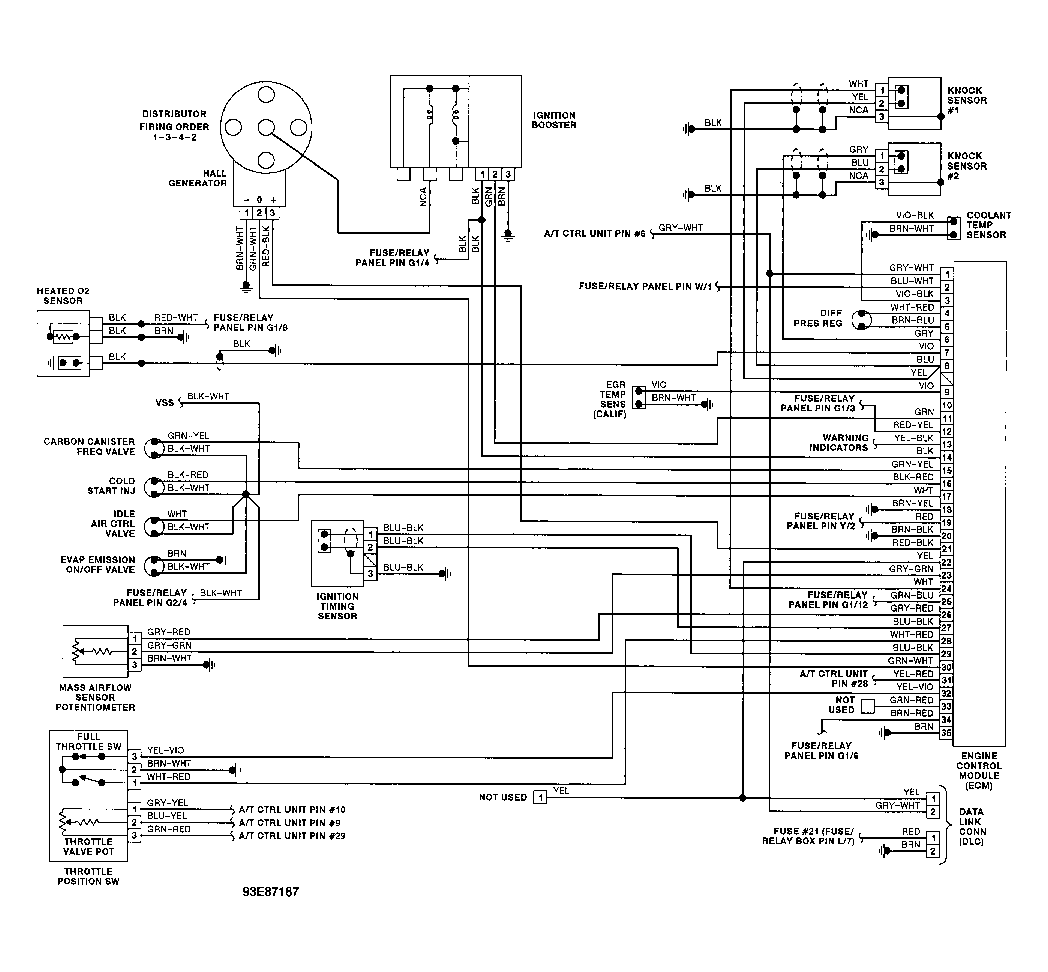

Fig 8: Wiring Diagram (Golf, GTI & Jetta - 2.0L)

Fig 9: Wiring Diagram (Passat 2.0L)

Fig 10: Wiring Diagram (Passat 2.8L - Without Distributor)

NOTE: Passat used a distributor type ignition system in vehicles up to production date of 1/93. Engine code may be PG or AAA.

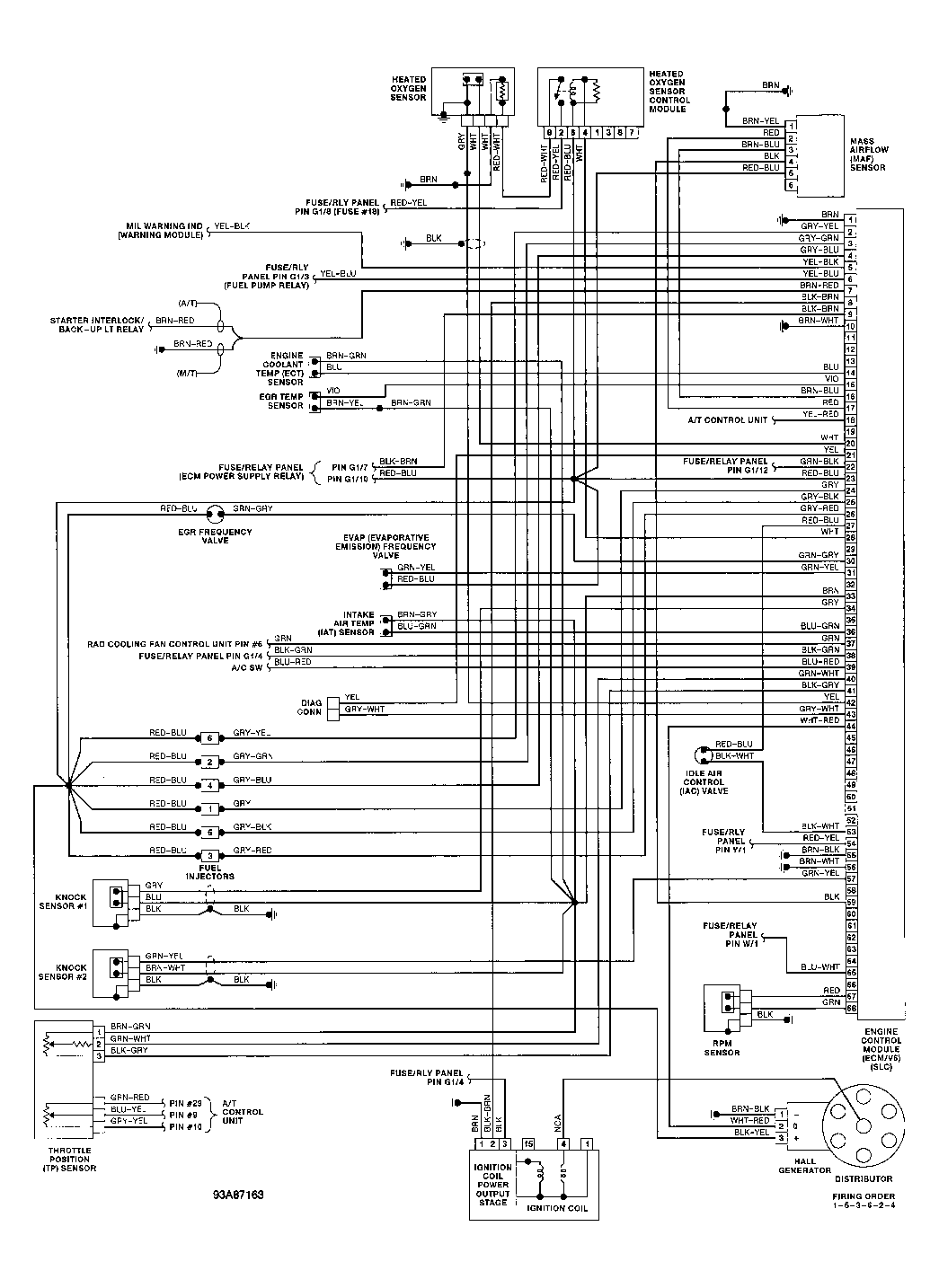

Fig 11: Wiring Diagram (Passat 2.8L - With Distributor - 1 Of 2)

Fig 12: Wiring Diagram (Passat 2.8L - With Distributor - 2 Of 2)
