Heater Control Panel
Three slide levers and a fan switch rotary knob are used on control panel. Top left lever is used to control airflow to footwells. Top right lever is used to control airflow to head (upper body) area.
Bottom slide lever controls temperature. Depending on position of levers, fresh (cool) air or heated air flows out of vents.

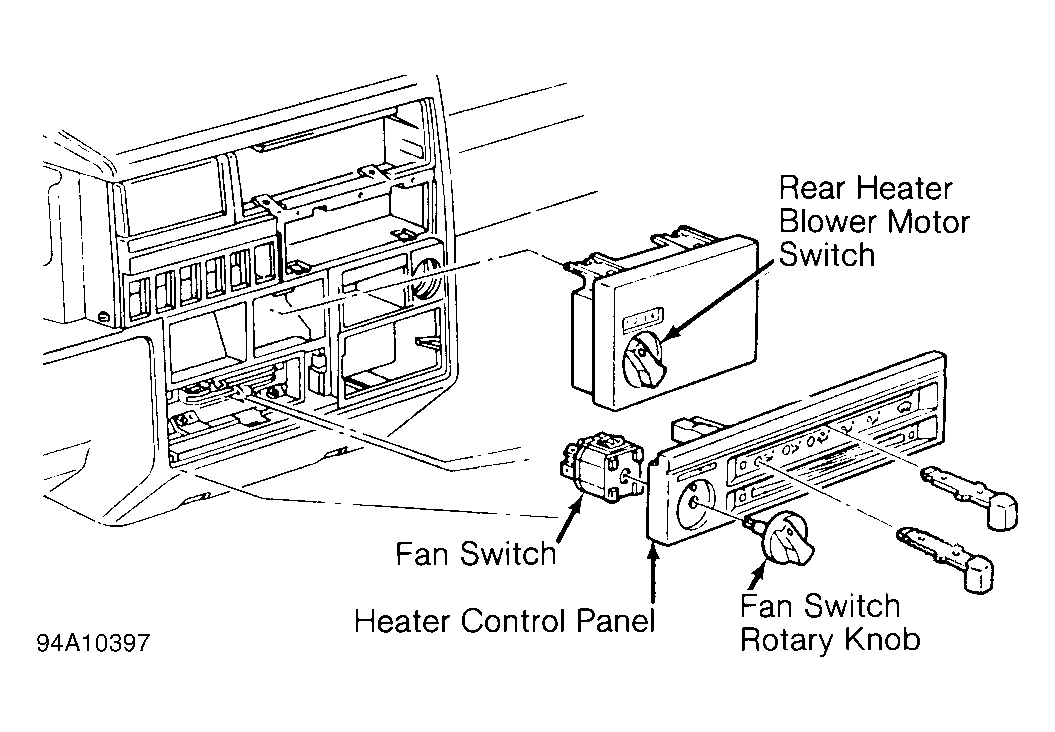

A rear heater blower motor switch, located above heater control panel, has 3 fan speeds. See Fig 1 . Temperature setting for front heater is also the temperature setting for the rear heater.
