Lock Mechanism
NOTE:
Adjustment is made on right rear double door. Top and bottom door locks must latch completely.
NOTE:
Numbers in parenthesis, in illustrations, refer to components identified in test steps.
When activating lock from outer door handle, both door locks must unlock at the same time. If door locks unlock audibly one after the other, perform the following adjustment procedure:
- Remove right rear double door trim. See Figure .

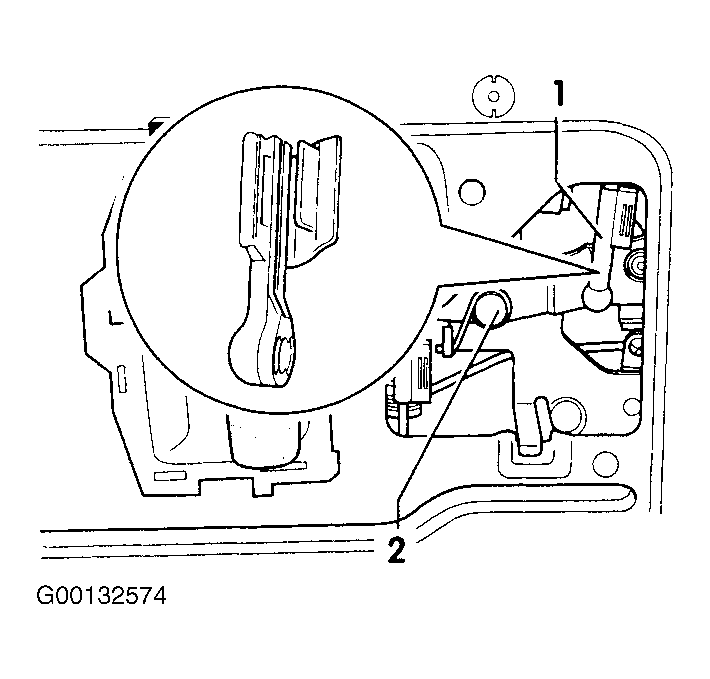

- Unclip ball joint (1) at lock mechanism. See Fig 1 .
- Turn ball joint (1) on threaded operating rod to shorten or lengthen rod. Lengthening operating rod causes respective door lock to unlock "later", shortening it, makes lock unlock "sooner".
- Adjust length of both operating rods so that both door locks can be unlocked individually and simultaneously.
