Spiral Spring: Removal
- Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS
. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM
.
- Remove air bag unit. See AIR BAG UNIT
. Remove steering wheel. See STEERING WHEEL

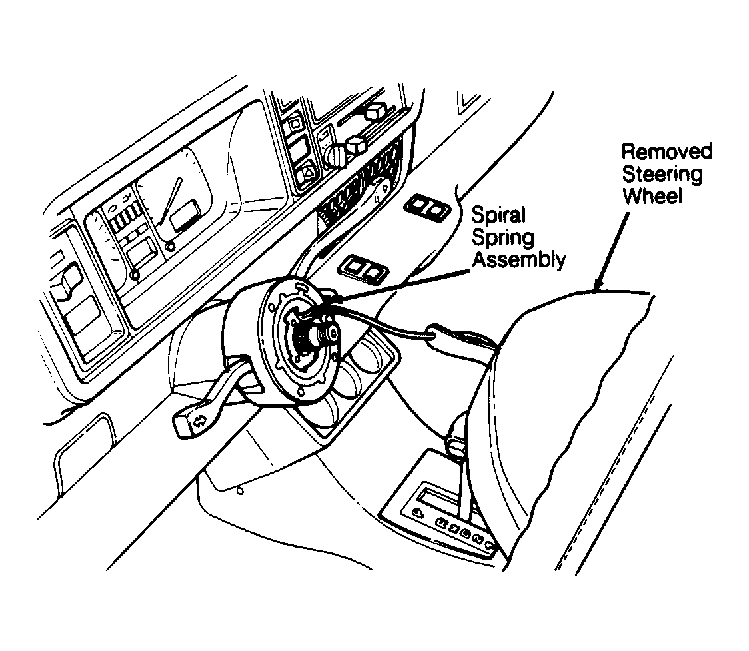

. Remove knee bar panel and steering column lower trim. Disconnect 2-pin wiring connector (Green/Black and Green/Red wires) at base of steering column. Remove 3 spiral spring retaining screws, and remove spiral spring. See Fig 1
.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
