Heater System: Description

WARNING: To avoid injury from accidental air bag deployment, read and carefully follow all SERVICING PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG article in the ACCESSORIES/SAFETY EQUIPMENT Section.

The heater is a water-valve type which combines heating, defrosting and ventilation into one unit. See Figure through Figure . Controls include fan control knob and air distribution and temperature control levers. Blower fan provides 3 speeds.

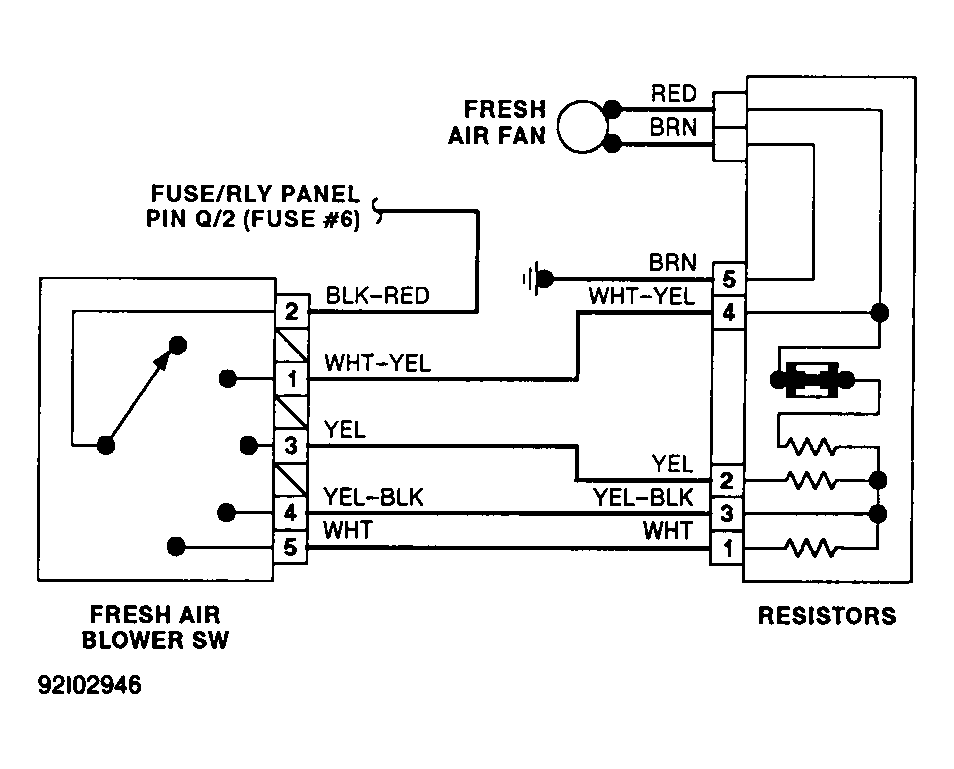

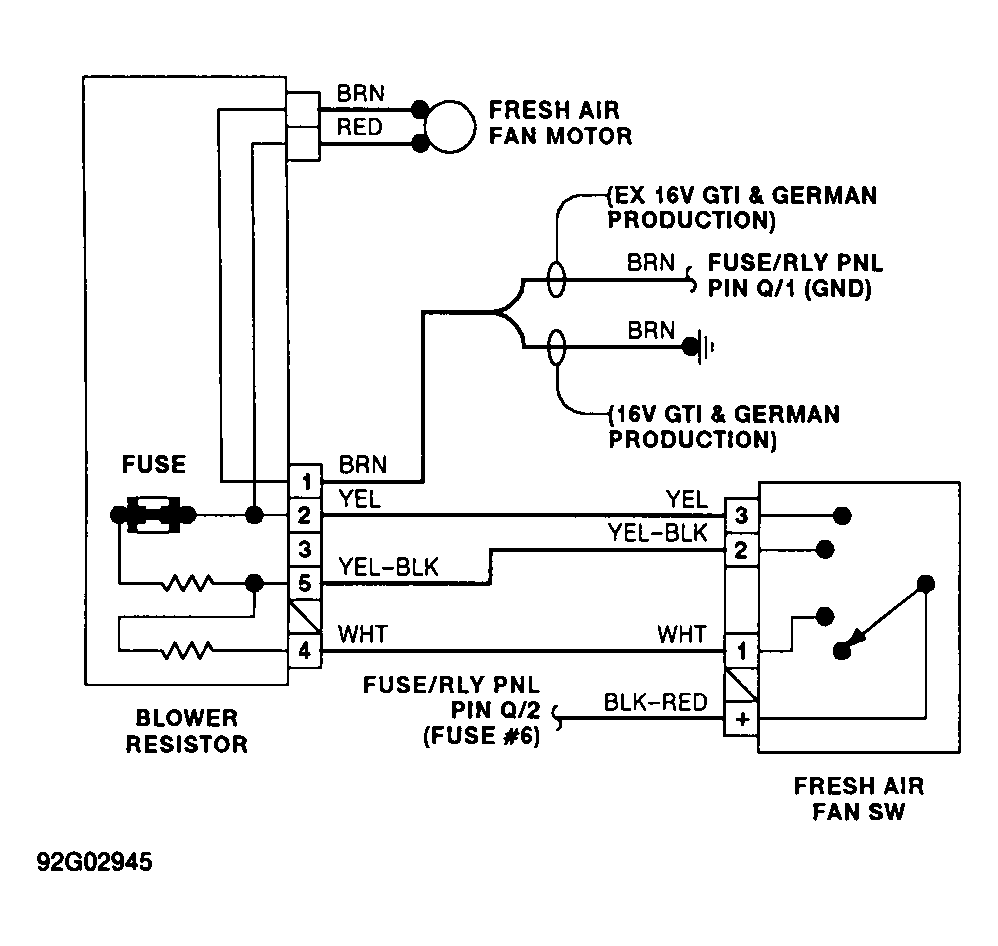

NOTE: Vanagon heater system information is not available from manufacturer. Only exploded view and wiring diagrams are provided. See Figure , Figure and Figure .
