Component Locations

COMPONENT LOCATIONS

Component Location
After-Run Thermoswitch On Cylinder Head
Cooling Fan Thermoswitch On Radiator
Radiator Cooling Fan Behind Radiator
Cooling Fan After Run Relay No. 15 (Control Unit) On Fuse/Relay Panel
Cooling Fan & A/C Fuse No. 19 On Fuse/Relay Panel
Cooling Fan After Run & Horn Fuse No. 13 On Fuse/Relay Panel

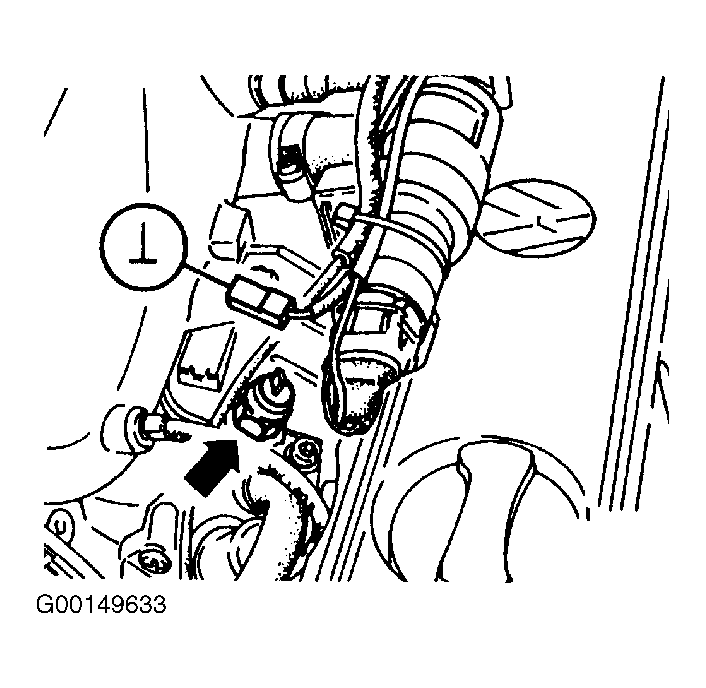

Fig 1: Locating After-Run Thermoswitch
G00149633Courtesy of VOLKSWAGEN UNITED STATES, INC.

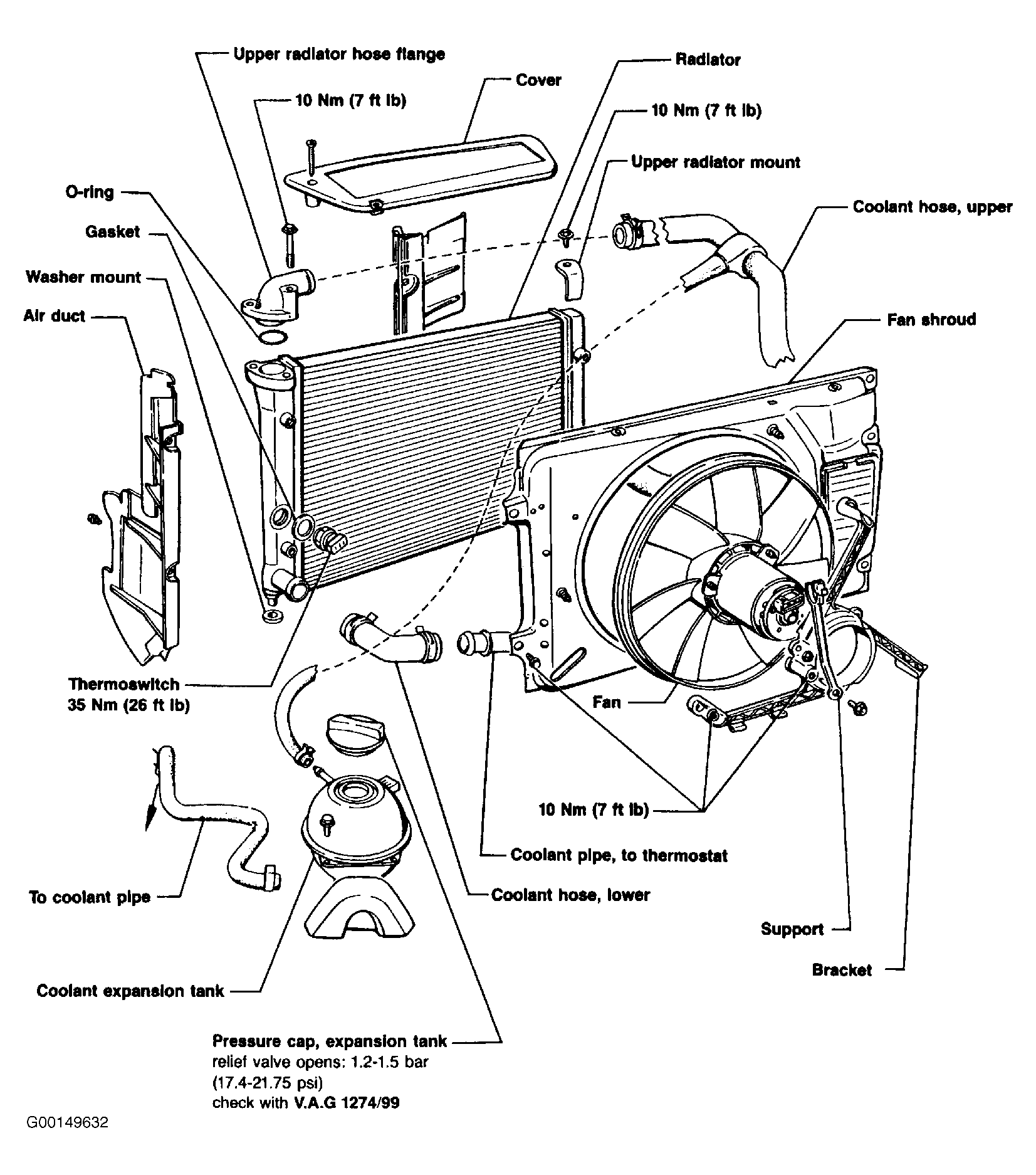

Fig 2: Exploded View Of Radiator Cooling Fan
G00149632Courtesy of VOLKSWAGEN UNITED STATES, INC.

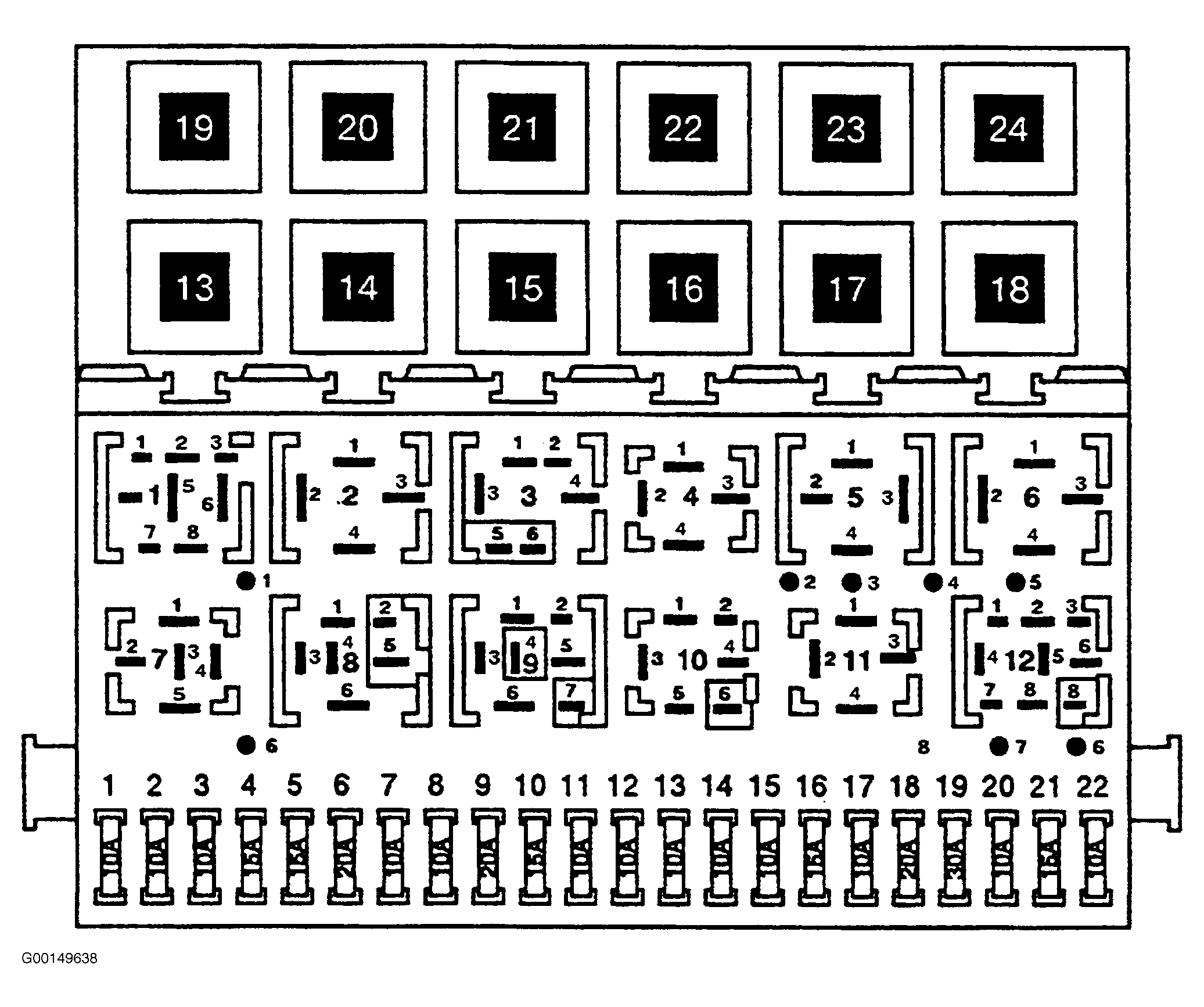

Fig 3: Locating Fuses & Relays In Fuse/Relay Panel
G00149638Courtesy of VOLKSWAGEN UNITED STATES, INC.
