Component Locations

COMPONENT LOCATIONS

Component Location
After-Run Thermoswitch (1) Mounted On Cylinder Head
Radiator Cooling Fan (2) Attached To Radiator
Radiator Thermoswitch (2) On Bottom Of Radiator
(1) See Fig 2
(2) See Fig 1

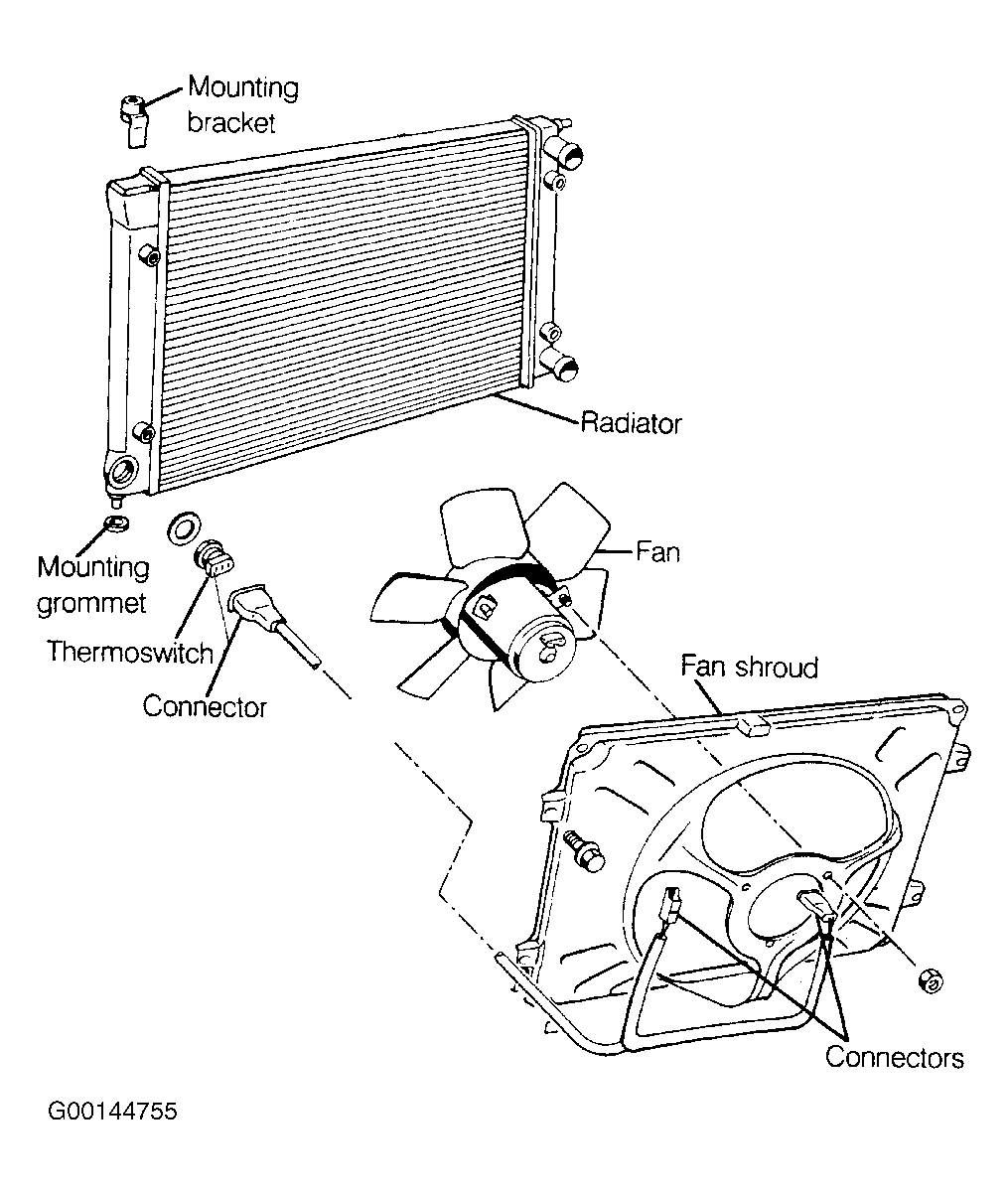

Fig 1: Locating Electric Cooling Fan Components
G00144755Courtesy of VOLKSWAGEN UNITED STATES, INC.

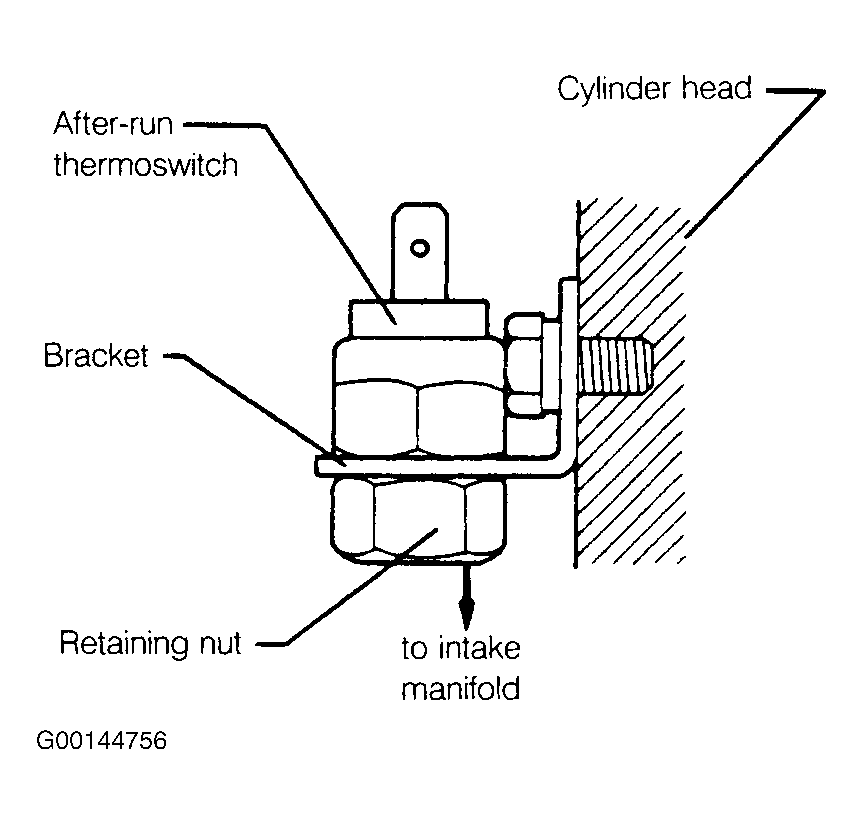

Fig 2: Locating After-Run Thermoswitch
G00144756Courtesy of VOLKSWAGEN UNITED STATES, INC.
