Battery Date Code Interpreting (GROUP 27, NO. 91-02)

Publication date: 1991-10-31
Reference number: GROUP 27, NO. 91-02

BATTERY DATE CODE INTERPRETING

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 27, NO. 91-02

BATTERY DATE CODE INTERPRETING

Model(s): 1987-on Volkswagen Fox

Group: 27 - Engine Electrical

Bulletin No.: 91-02

Date: October 31, 1991

CONDITION

Some Fox batteries do not have the standard date code stamped in the post or on the case. There is an alpha numerical number stamped into the battery case top instead. See Fig 1 .

SERVICE

The first two digits (a) from the left represent the month and year of production of the battery. The third and fourth digits (b) represent the production day of the month. The fifth digit (c) and the sixth through ninth digits (d) are for the battery manufacturer's use only.

To determine date of battery manufacture, (month and year only) look up the first two digits of the date code (a) on the following chart.

BATTERY MANUFACTURE DATE CODE

MONTH	1989	1990	1991	1992	1993
Jan.	69	74	01	02	25
Feb.	71	76	03	04	27
Mar.	73	78	05	06	29
Apr.	75	80	07	08	31
May	77	82	09	10	33
June	79	84	11	12	35
July	81	86	13	14	37
Aug.	83	88	15	16	39
Sept.	85	90	17	18	41
Oct.	87	92	19	20	43
Nov.	89	94	21	22	45
Dec.	91	96	23	24	47

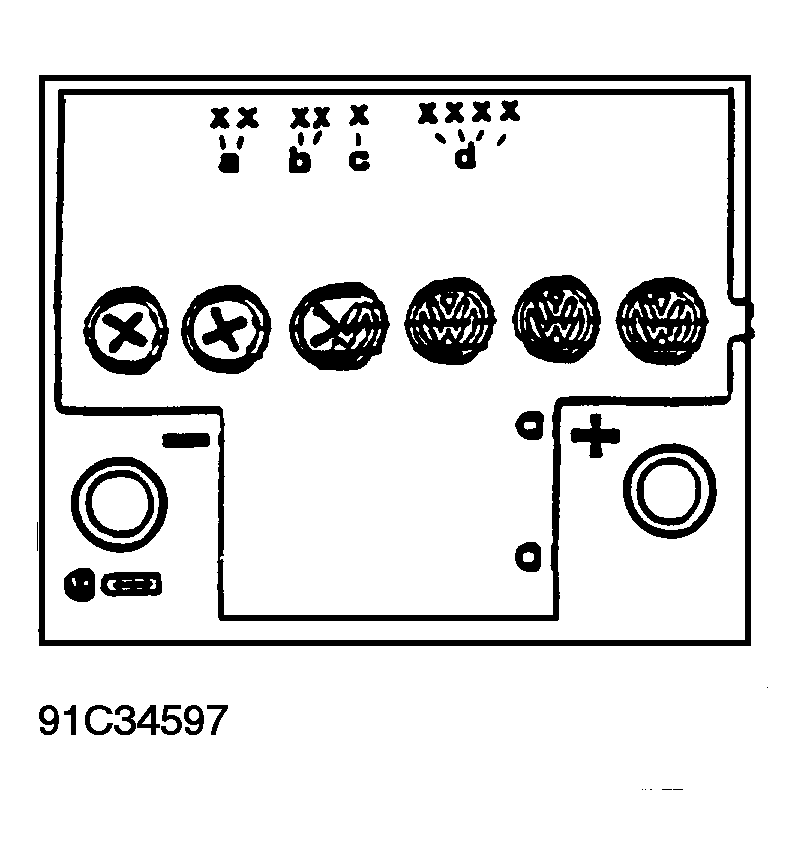

Fig 1: Battery Date Code
