Aligning Camshaft Timing Marks

Fig 1: Setting Camshaft Timing Marks (Diesel)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: For more information regarding camshaft timing belt service refer to the 1.6L 4-CYL DIESEL/TURBO DIESEL article in the ENGINE MECHANICAL section.

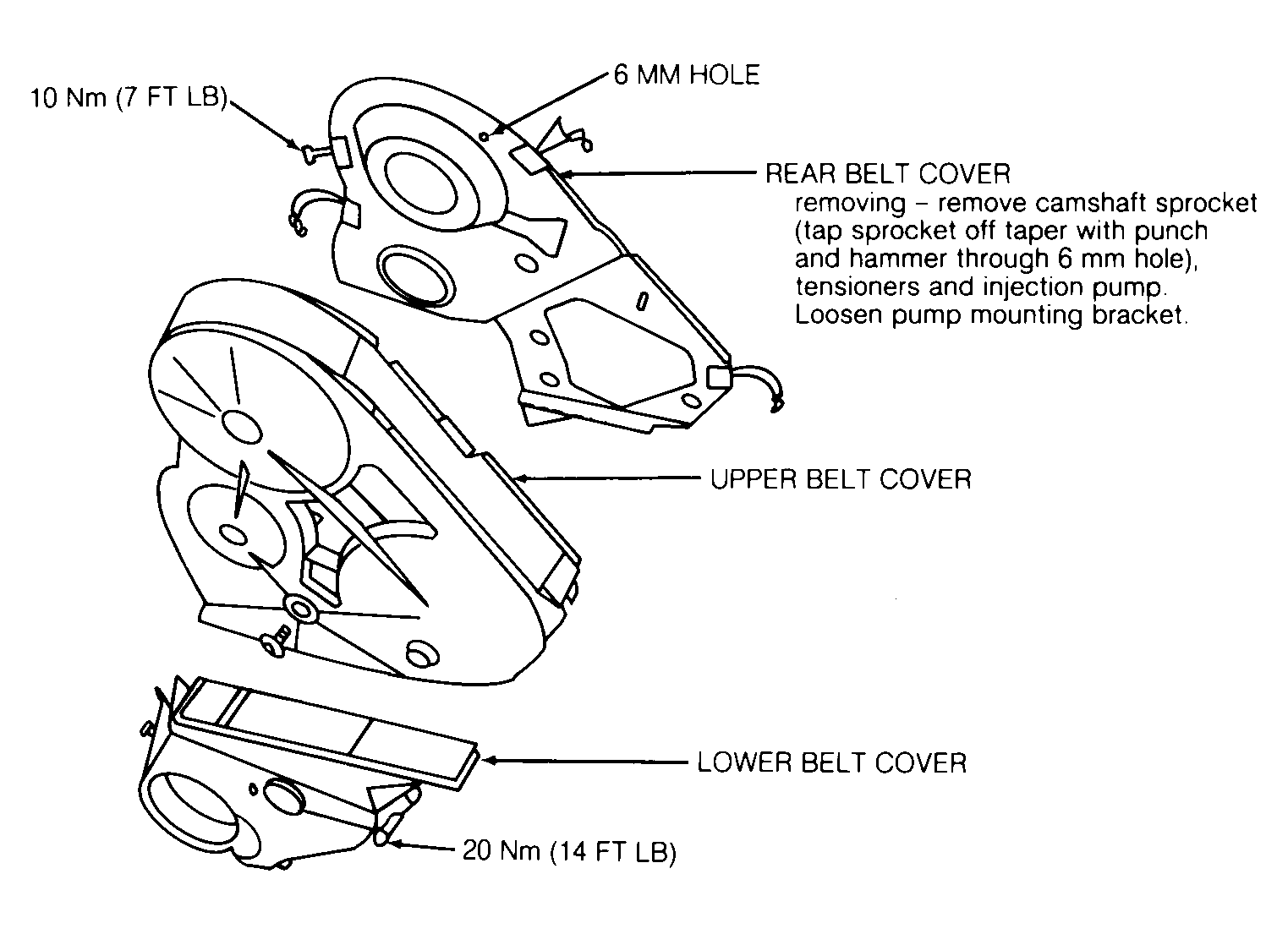

Fig 2: New Camshaft Timing Cover (Diesel)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: For more information on camshaft timing belt service refer to the GROUP 15, NO. 84-06 1.6L DIESL TIME BELT & CVR article in the TSB section.
