Accelerator Cable

Place accelerator pedal in full throttle position. Adjust cable with nuts until pump lever contacts stop free of strain. Be sure ball pin on pump lever is pointing upward and touching end of elongated hole. Accelerator cable should be attached at upper hole in bracket.

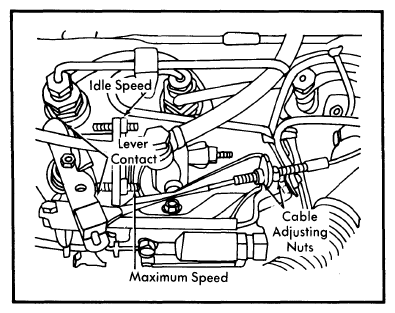

Fig 1: Accelerator Cable Adjusting Points

Courtesy of NOT AVAILABLE

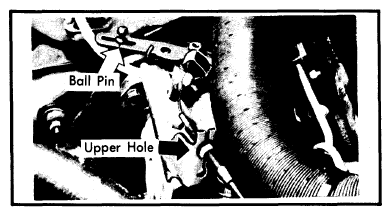

Fig 2: Accelerator Cable Attaching Points

Courtesy of NOT AVAILABLE
