Float Level

Invert air horn and allow float to drop by its own weight. Measure clearance between float and air horn gasket surface. See Fig 1 Clearance should be within specifications. See appropriate CARBURETOR ADJUSTMENT SPECIFICATIONS table  in this article. If not, bend float seat lip as necessary.

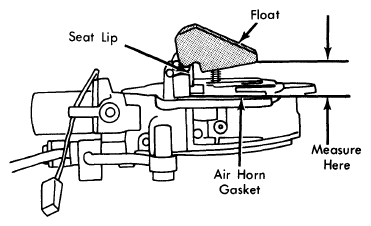

Fig 1: Float Level Adjustment
G09326666Courtesy of NOT AVAILABLE
