1979 Models

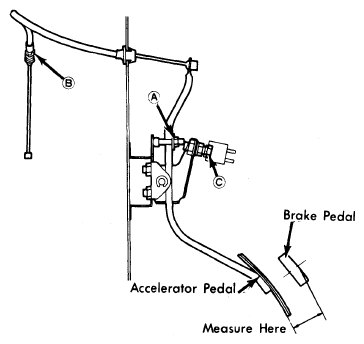

  1. Check accelerator pedal position. Pedal should be 1.5-1.9" (37-47 mm) lower than brake pedal. See Figure. If necessary, adjust nut "A" to obtain correct position.
  2. Check cable free play at carburetor for 0.04 - 0.12" (1 - 3 mm). To adjust cable free play, adjust nut "B". Depress accelerator all the way to the floor and check that throttle valves are wide open. If necessary, adjust stopper bolt "C".
